The NPM-DX provides a greater line throughput, better quality and lower production cost featuring an autonomous line control, which guaranties a stable operation based on automatic functionality. This functionality in combination with the machine set up offers a labour-saving production with improved utilization. In combination with the Panasonic software environment and embedded into an Industry 4.0 philosophy, the user can expect a modern shop floor management system including various remote operation options, feeder setup navigation, component supply navigation etc. In total, the NPM-DX reduces downtimes and increase the line throughput. With 92 400 cph and a feeder capacity for up to 136 reels, the NPM-DX is the ideal solution to meet the expectation of an evolving electronics assembly industry. The NPM-DX can process PCB sizes of up to 510 x 590 mm and place large connectors (up to 150 x 25mm) and other components (up to 120 x 90mm). This and other features make the NPM-DX the best solution for high volume-mix manufacturing.

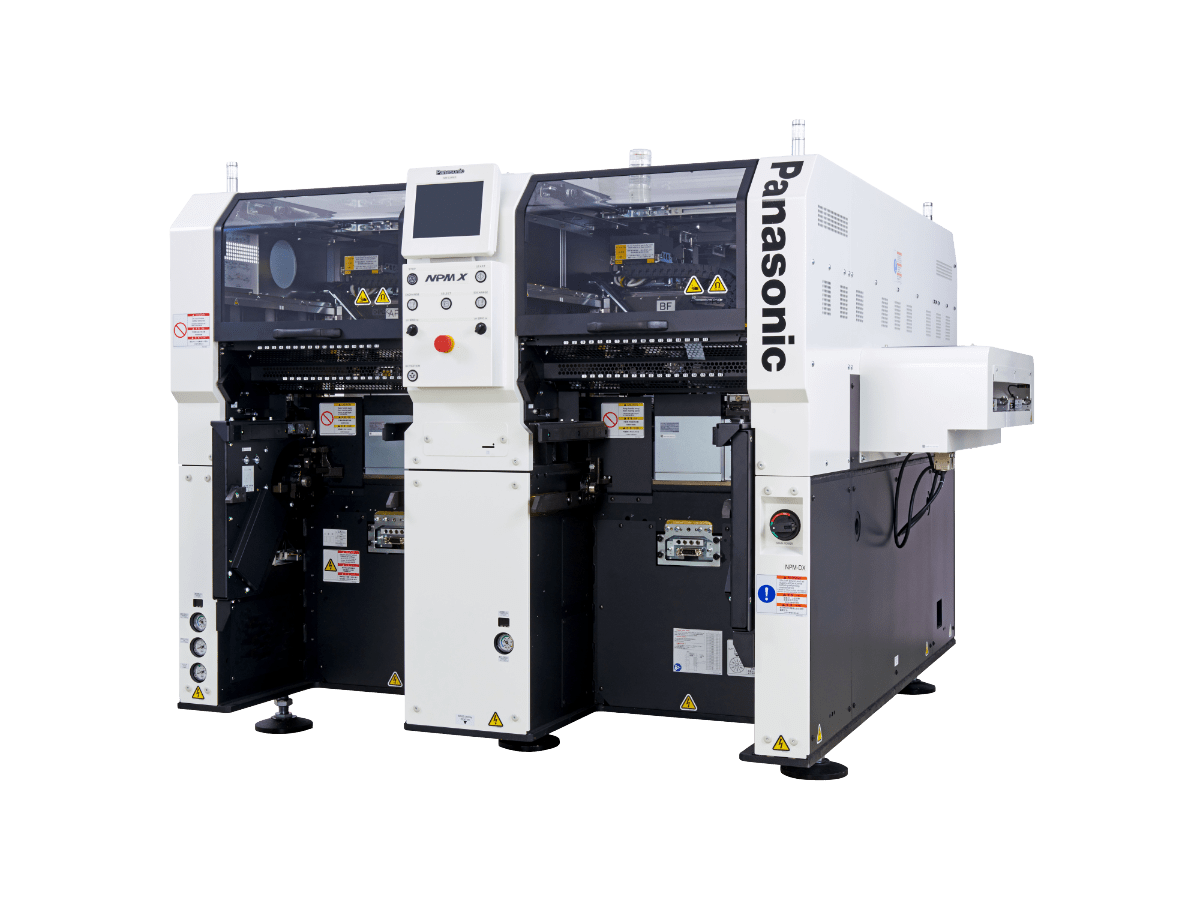

Panasonic NPM-DX
The NPM-DX provides a greater line throughput, better quality and lower production cost featuring an autonomous line control, which guaranties a stable operation based on automatic functionality. This functionality in combination with the machine set up offers a labour-saving production with improved utilization. In combination with the Panasonic software environment and embedded into an Industry 4.0 philosophy, the user can expect a modern shop floor management system including various remote operation options, feeder setup navigation, component supply navigation etc. In total, the NPM-DX reduces downtimes and increase the line throughput. With 92 400 cph and a feeder capacity for up to 136 reels, the NPM-DX is the ideal solution to meet the expectation of an evolving electronics assembly industry. The NPM-DX can process PCB sizes of up to 510 x 590 mm and place large connectors (up to 150 x 25mm) and other components (up to 120 x 90mm). This and other features make the NPM-DX the best solution for high volume-mix manufacturing.
| Placement Head |
16 nozzle head |
|---|
| Model ID | NPM-DX | |||
| PCB dimensions (mm) | Single-lane mode | L 50 × W 50 ~ L 510 × W 590 | ||
| *When the long spec. conveyor is selected | Dual-lane mode | L 50 × W 50 ~ L 510 × W 300 | ||
| PCB exchange time | 2.1 s ( L 275 mm or less) | |||
| *When the short spec. conveyor is selected | 4.8 s ( L 275 mm or over to L 460 mm or less) *May differ depending on PCB specifications. | |||
| Electric source | 3-phase AC 200, 220, 380, 400, 420, 480 V 5.0 kVA | |||
| Pneumatic source *1 | Min.0.5 MPa、200 L /min (A.N.R.) | |||
| Dimensions (mm) | W 1 665 *2 × D 2 570 *3 × H 1 444 *4 | |||
| Mass | 3 600 kg (Only for main body:This differs depending on the option configuration.) | |||
| Placement head | Lightweight 16-nozzle head V2 (Per head) | Lightweight 8-nozzle head (Per head) | 4-nozzle head (Per head) | |
| Max. speed | 46 200 cph (0.078 s/ chip) | 24 000 cph (0.150 s/ chip) | 8 500 cph (0.424 s/ chip) 8 000 cph (0.450 s/ QFP) |
|
| Placement accuracy (Cpk≧1) | ±25 μm/Square chip | ±25 μm/ Square chip ±40 μm/QFP 12 mm Under ±25 μm/QFP 12 mm to 32 mm |
±20 μm/ QFP | |
| Component dimensions (mm) | 0201 component *5*6 / 03015 component *5 0402 component *5 to L 6 x W 6 x T 3 |
0402 component *5 ~L 45 x W 45 or L 100 x W 40 x T 12 | 0603 chip ~ L 120 x W 90 or L 150 x W 25 x T 30 | |
| Component supply | Taping | Tape:4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm | Tape:4 ~56 /72 / 88 / 104 mm | |
| 4, 8 mm tape:Max. 136 | ||||
| Stick | Max. 32 (Single stick feeder) | |||
