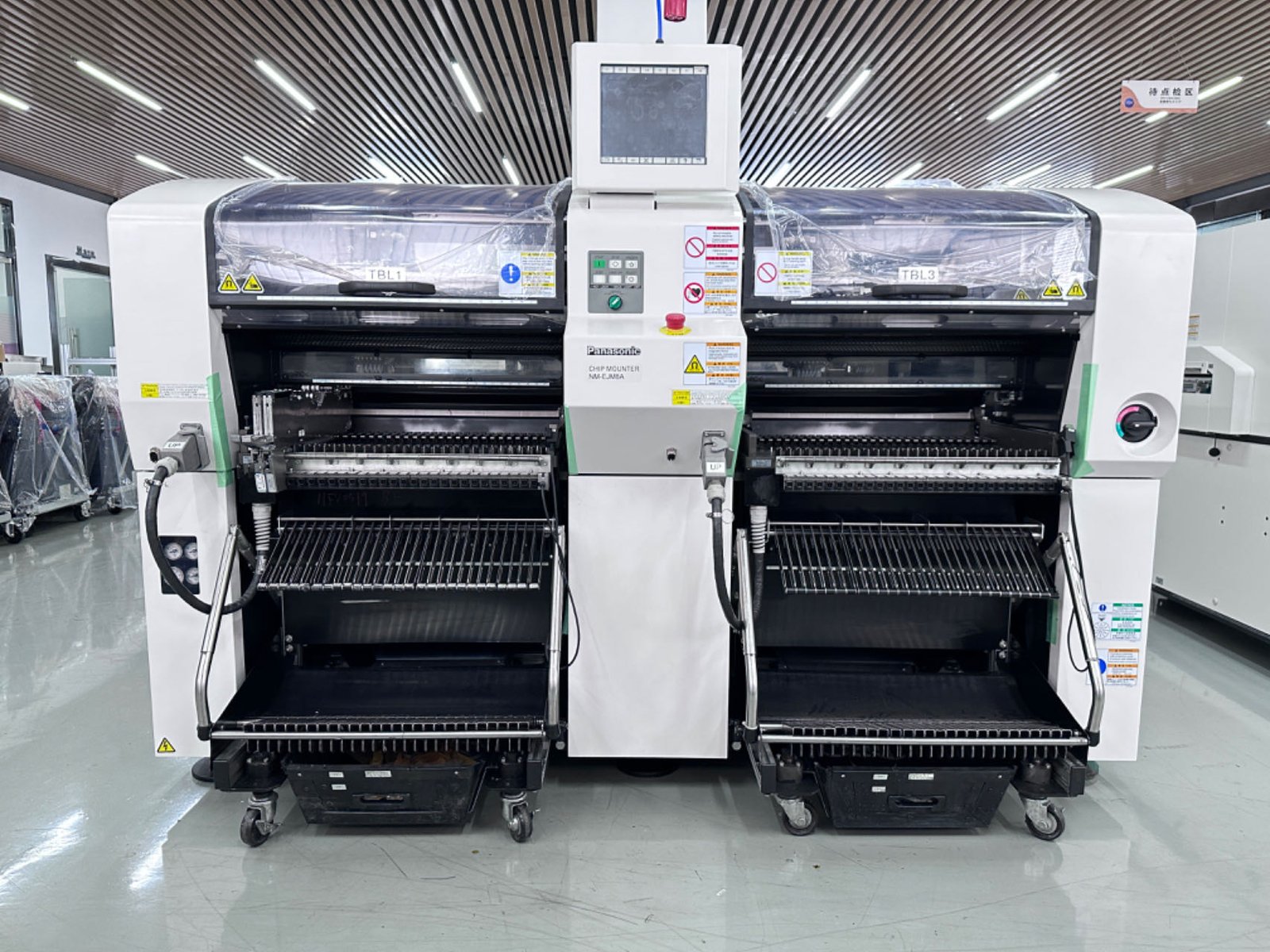

Panasonic CM602-L high-speed placement machine, CM602 placement machine not only follows the original module of Panasonic placement machine CM402 but also adds a 12-nozzle high-speed head and direct suction tray as needed, expanding the original 8 nozzles The function of the high-speed placement head, combined with the 3-nozzle multi-function head with pressure control function, makes it possible to combine up to 10 different module combinations, truly modularization, allowing customers to mix and match at will.

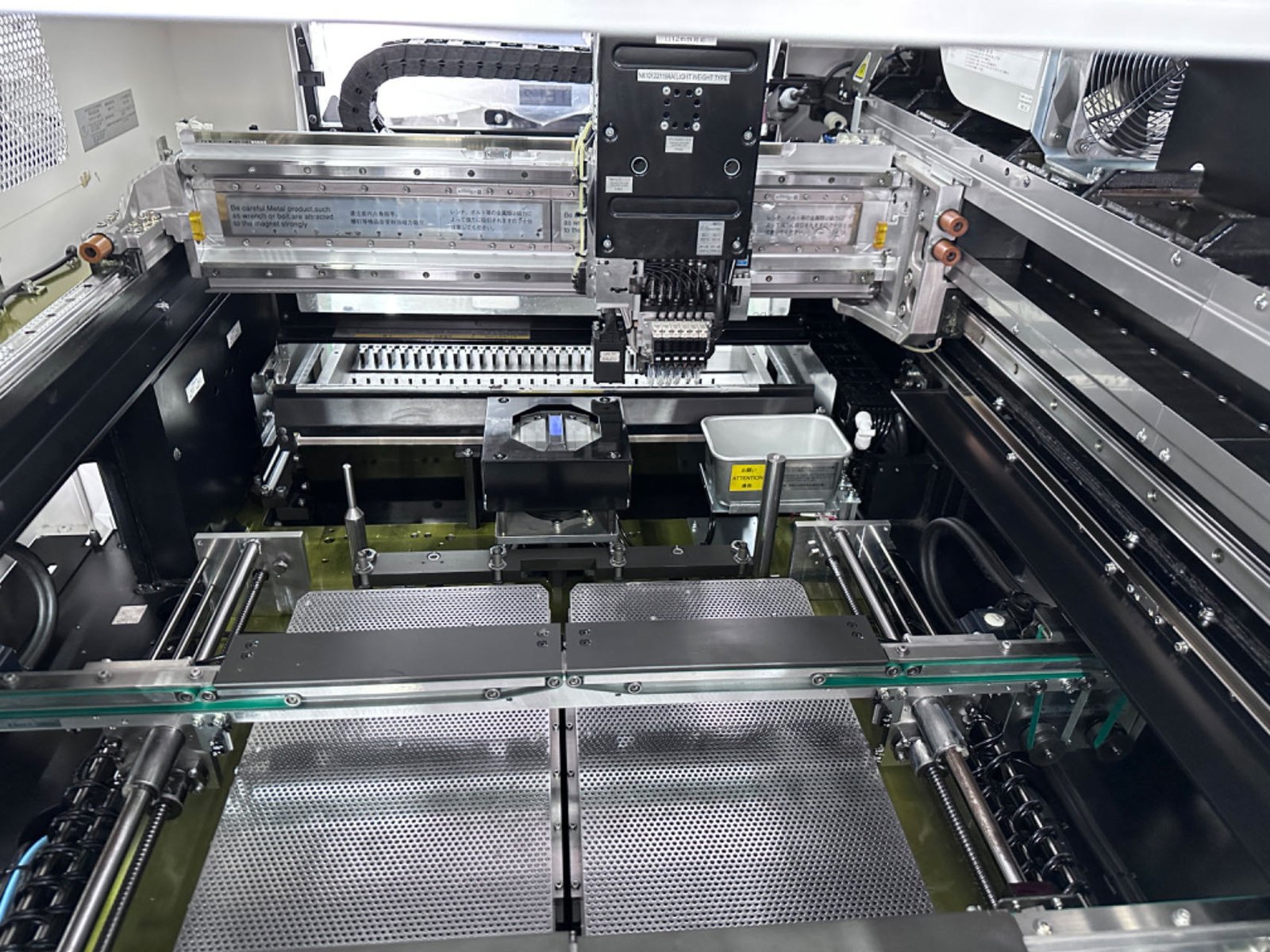

1. The XY axis adopts the latest linear motor to provide the strongest power for CM602.
2. The new design and materials of the sports arm beam and head not only reduce the weight, but also greatly strengthen the rigidity, making it more stable during the movement
3. The movement of X and Y axis adopts high-speed and low-vibration design.
4. The linear motor adopts a new cooling design scheme, which can cool down faster and more effectively than other equipment using linear motors under high-speed movement, ensuring the motor
Operating efficiency and increase its lifespan.
5,7 kinds of material racks can correspond to all tape packaging components from 8mm to 104mm, which is the most versatile and widely applicable equipment in the industry. And according to customer needs
Qiuxin added an 8mm single feeder.
6. Material rack exchange during operation, overall exchange trolley design, overall exchange support pin design, etc. can greatly improve equipment operation efficiency and model switching time
