Its high-speed and high-accuracy placement capabilities make it an ideal choice for mass production while ensuring excellent quality, Equipped with intelligent features such as automatic nozzle changing and vision alignment, the PANASONIC NPM-D streamlines the production process and minimizes downtime, ultimately increasing productivity and cost-effectiveness for our customers. Additionally, its reliable performance and low maintenance requirements make it a valuable asset for any manufacturing facility
Hot

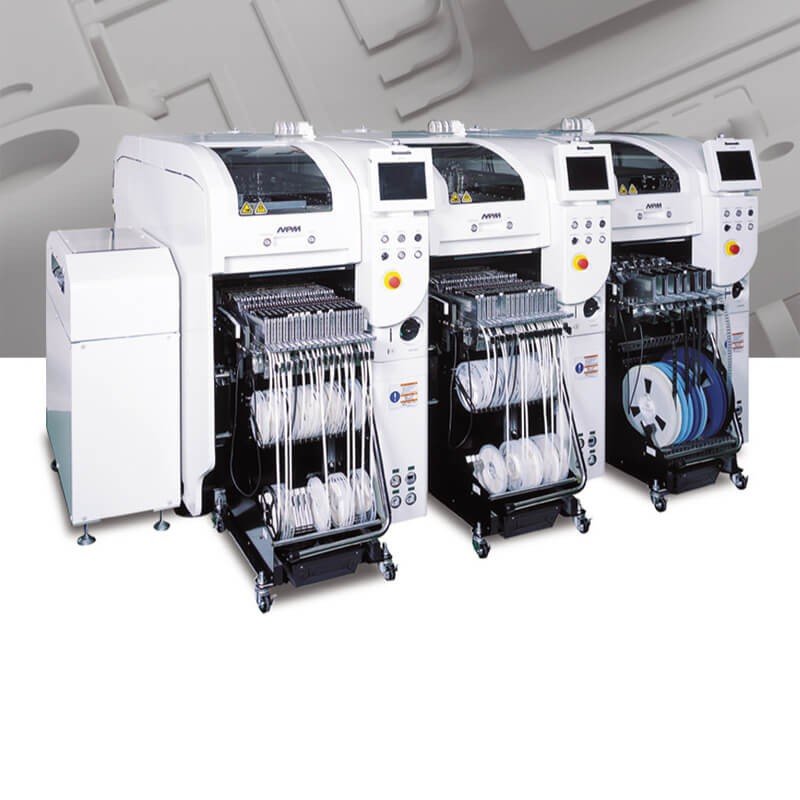

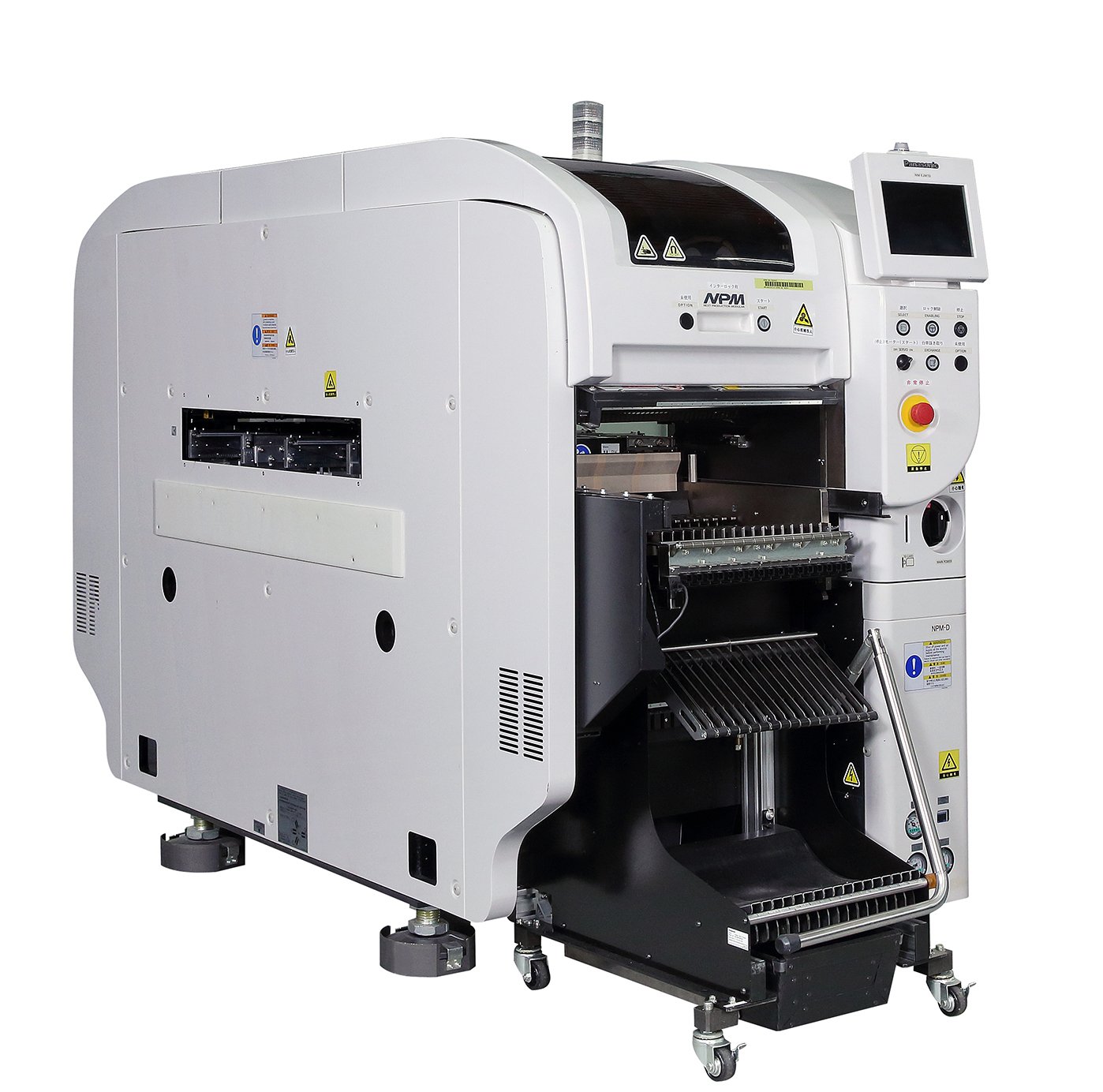

Panasonic NPM-D
The PANASONIC NPM-D is a highly advanced and efficient placement machine that offers outstanding speed and precision for electronics manufacturing. With its innovative technology and user-friendly interface, the PANASONIC NPM-D can handle a wide range of component types and sizes, making it suitable for diverse production needs
| Placement Head |
16 nozzle head |
|---|
Description
SPECIFICATION
| Model ID | NPM-D | |||||||
| Front head | Rear head | 16-nozzle head | 12-nozzle head | 8-nozzle head | 2-nozzle head | Dispensing head | No head | |
| 16-nozzle head | NM-EJM1D | NM-EJM1D-MD | ||||||
| 12-nozzle head | ||||||||
| 8-nozzle head | ||||||||
| 2-nozzle head | ||||||||
| Dispensing head | NM-EJM1D-MD | |||||||
| Inspection head | NM-EJM1D-MA | |||||||
| No head | NM-EJM1D | NM-EJM1D-D | ||||||
| PCB | Dual-lane mode | L50mm*W50mm~L510mm*W300mm | PCB | Dual-lane mode | 0S**No 0s When cycle time is 4.5s or less | |||
| dimensions*1 | exchange | |||||||
| Single-lane mode | L50mm*W50mm~L510mm*W590mm | time | Single-lane mode | 4.5S | ||||
| Electric source | 3-phase AC 200,220,380,400,420,480V 2.5kVA | |||||||
| Pneumatic source*2 | 0.5MPa.100L/min(A.N.R) | |||||||
| Dimensions*2 | W 832mm * D 2652mm*3 * H 1444mm*4 | |||||||
| Mass | 1520kg(Only for main body;This differs depending on the option configuration | |||||||
| Placement head | 16-nozzle head(With Dual Heads) | 12-nozzle head(With Dual Heads) | 8-nozzle head(With Dual Heads) | 2-nozzle head(With Dual Heads) | ||||
| Placement speed | Max.speed | 70 000cph(0.051s/chip | 62 500cph(0.058s/chip) | 40 000cph(0.090s/chip) | 8500cp(0.423s/QFP) | |||
| IPC9850(1608) | 53 800cph*5 | 48 000cph*5 | ||||||
| Placement accuracy(Cpk≥1) | ±40µm/chip | ±40µm/chip | ±40µm/chip ±30µm/QFP 12mm~32mm ±50µm/QFP 12mm Under |
±30µm/QFP | ||||
| Component dimensions(mm) | (01005")0402chip*6 to L6*W6*T3 | (01005")0402chip*6 to L12*W12*T6.5 | (01005")0402chip*6 to L32*W32*T12 | (0201")0603chip to L100*W90*T28 | ||||
| Component supply | Taping | Tape: 8 / 12 / 16 / 24 / 32 / 44 / 56 mm | Tape:8 to 56/72/88/104mm | |||||
| 8 mm tape:Max.68(double feeder, small real) | ||||||||
| Stick .Tray | Stivk:Max .20 (per tray feeder) | |||||||
