| Model ID |

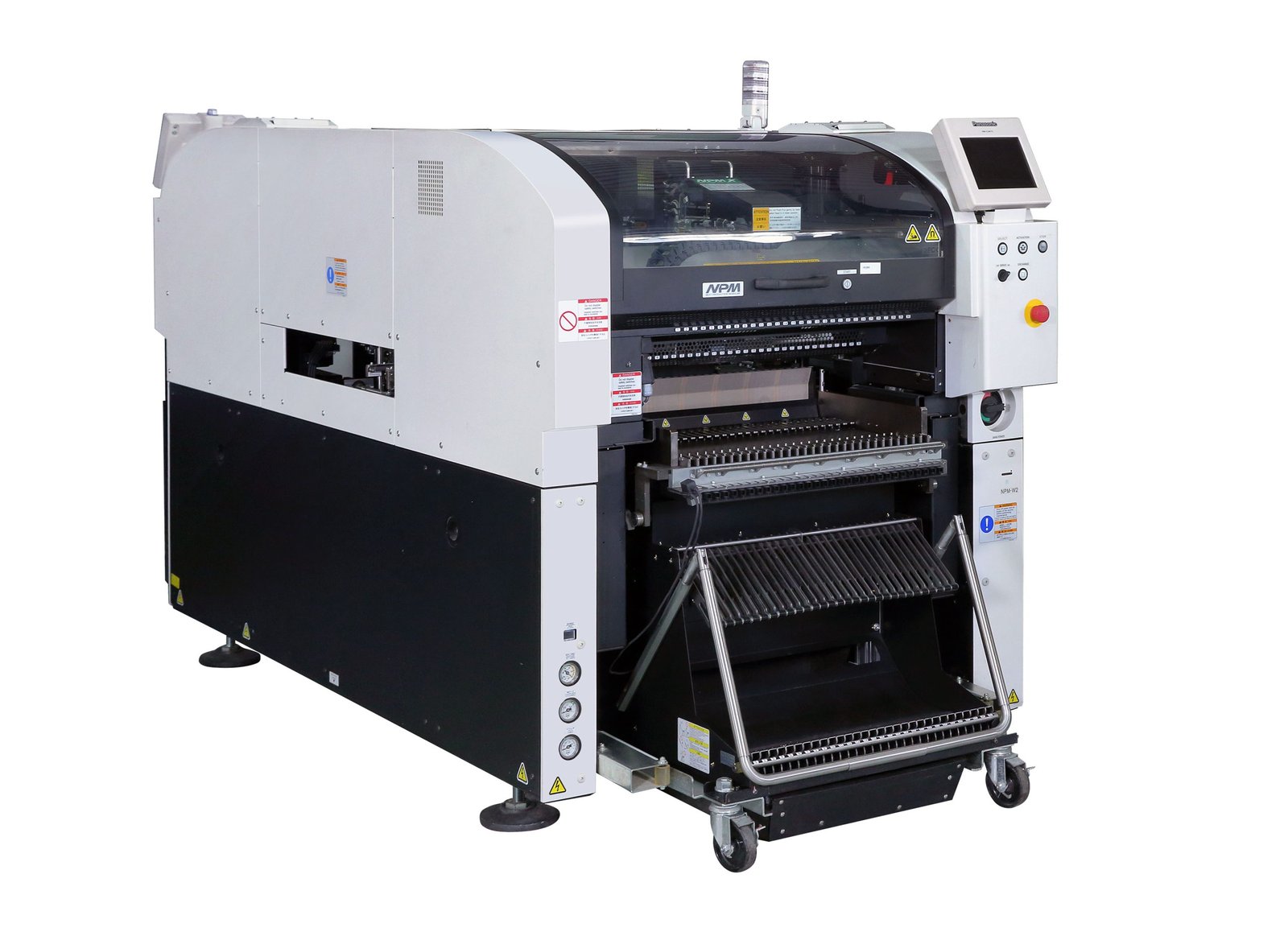

NPM-W2S Pick and place machine |
|
|
| PCB dimensions (mm) |
Single-lane*1 |
Batch mounting |
L 50 x W 50 ~ L 750 x W 550 |
|
|
| 2-positin mounting |
L 50 x W 50 ~ L 350 x W 550 |
|
|
| Dual-lane*1 |
Dual transfer (Batch) |
L 50 × W 50 ~ L 750 × W 260 |
|
|
| Dual transfer (2-positin) |
L 50 × W 50 ~ L 350 × W 260 |
|
|
| Single transfer (Batch) |
L 50 × W 50 ~ L 750 × W 510 |
|
|
| Single transfer (2-positin) |
L 50 × W 50 ~ L 350 × W 510 |
|
|
| Electric source |
3-phase AC 200, 220, 380, 400, 420, 480 V 2.0 kVA |
|
|
| Pneumatic source |
0.5 MPa, 200 L /min (A.N.R.) |
|
|
| Dimensions *2 (mm) |
W 1 280 *3 × D 2 477 *4 × H 1 444 *5 |
|
|
| Mass |
2 390 kg (Only for main body:This differs depending on the option configuration.) |
|
|
| Placement head |
Lightweight 16-nozzle head |
12-nozzle head |
Lightweight 8-nozzle head |
3-nozzle head V2 |
| Max. speed |
38 500cph (0.094 s/ chip) |
32 250cph (0.112 s/chip) |
20 800cph (0.173 s/ chip) |
8 320cph (0.433 s/ chip)
6 500cph (0.554 s/ QFP) |
Placement accuracy
(Cpk≧1） |
±30 μm / chip
(±25μm / chip *6) |
±30 μm / chip |
± 30 µm/chip
± 30 µm/QFP
12mm
to 32mm
± 50 µm/QFP
12mm Under |
± 30 µm/QFP |
| Component dimensions (mm) |
03015*7 *8/0402*7 chip ~ L 6 x W 6 x T 3 |
0402*7 chip ~ L 12 x W 12 x T 6.5 |
0402*7 chip ~ L 32 x W 32 x T12 |
0603 chip to L 150 x W 25 (diagonal152) x T 30 |
| Component supply |
Taping |
Tape : 4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm |
Tape : 4 to 56 mm |
Tape : 4 to 56 / 72 / 88 / 104 mm |
| Max.120 (Tape: 4, 8 mm, Small real) |
Front/rear feeder cart specifications : Max.120
( Tape width and feeder are subject to the conditions on the left)
Single tray specifications : Max.86
( Tape width and feeder are subject to the conditions on the left)
Twin tray specifications : Max.60
( Tape width and feeder are subject to the conditions on the left) |
| Stick |
- |
Front/rear feeder cart specifications :
Max.15 (Single stick feeder)
Single tray specifications :
Max.15 (Single stick feeder)
Twin tray specifications :
Max.15 (Single stick feeder) |
| Tray |
- |
Single tray specifications : Max.20
Twin tray specifications : Max.40 |
