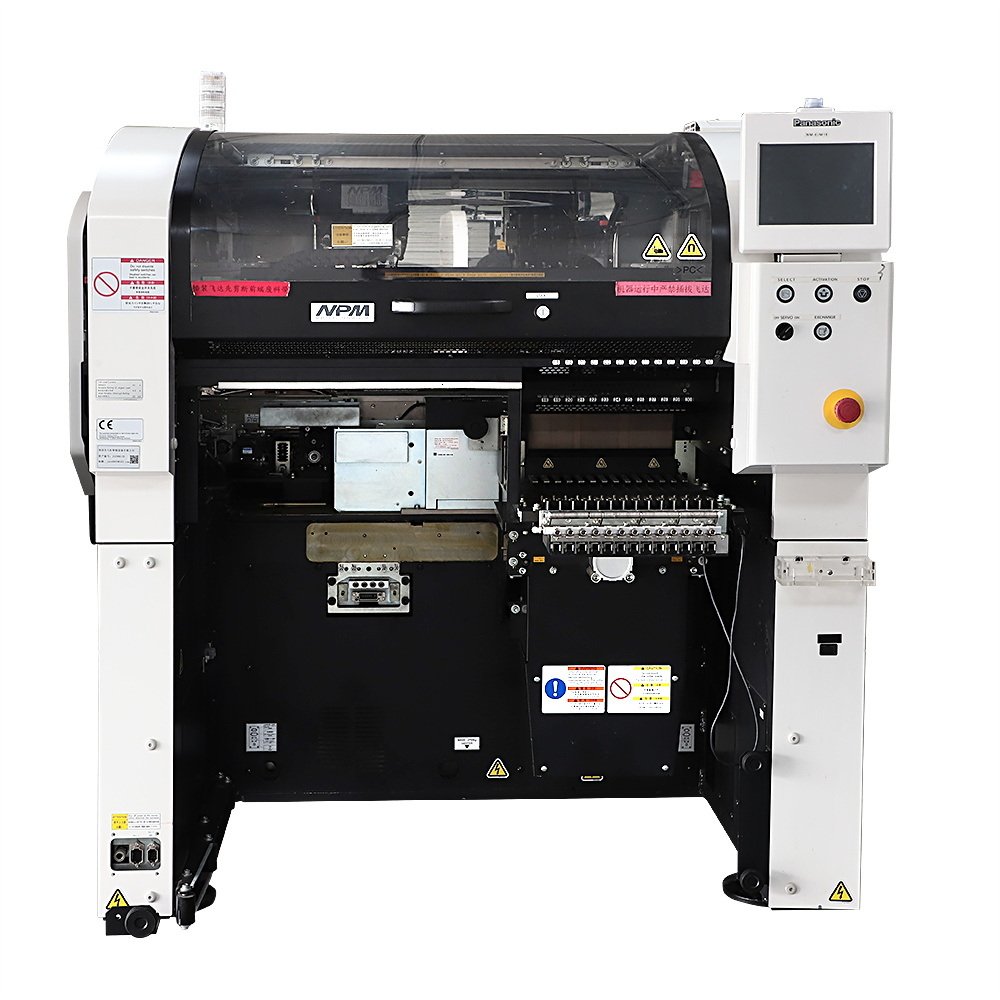

The NPM-TT2 (Next Production Modular-Twin Tray II) platform represents the next generation in twin tray modular production from Panasonic’s award-winning NPM platform—ideal for any mix.

Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.

Featuring an advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities

SPECIFICATION
Model ID NPM-TT2
PCB
dimensions
(mm)		 PC size Single-lane mode L 50 x W 50 ~ L 510 x W 590
Dual-lane mode L 50 x W 50 ~ L 510 x W 300
M size Single-lane mode L 50 x W 50 ~ L 510 x W 510
Dual-lane mode L 50 x W 50 ~ L 510 x W 260
PCB exchange time Single-lane mode 4.0 s (With no component mounted on the reverse side of PCB)
Dual-lane mode 0 s* *No 0s when cycle time is 4.0 s or less
Electric source 3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA
Pneumatic source Min.0.5 MPa, 200 L /min (A.N.R.)
Dimensions *1 (mm) W1300*2 x D2798*3 x H1444*4
Mass 2 690 kg(Only for main body:This differs depending on the option configuration.)
Placement head Lightweight 8-nozzle head
(Per head)		 3-nozzle head V2 *5
(Per head)
Placement speed PC size 18 000 cph (0.20 s/chip) 7 200 cph (0.50 s/chip)
5 900 cph (0.61 s/QFP)
M size 17 460 cph (0.21s/chip) 6 984 cph (0.52 s/chip)
5 723 cph (0.63 s/QFP)
Placement accuracy (Cpk≧1) ± 40 µm/chip
± 30 µm/QFP 12mm to 32mm
± 50 µm/QFP 12mm Under		 ±40 μm/ chip
±30 μm/ QFP
Component
dimensions
(mm)		 0402 chip*6 to L32 x W32 x T12 0603 chip to L150 x W25(diagonal152) x T30
Component supply Taping Tape : 4 to 56 / 72 mm Tape : 4 to 56 / 72 / 88 / 104 mm
Specifications for front/rear tray feeders : Max.52
Specifications for front/rear feeder carts : Max.120 (Tape:4, 8 mm)
Stick Specifications for front/rear tray feeders : Max.12 (Single stick feeder)
Specifications for front/rear feeder carts : Max.28 (Single stick feeder)
Tray Max.40 (Front supply unit : Max. 20 + Rear supply unit : Max. 20)
INFO

DOCUMENT DOWNLOAD:

NPM-TT2 PDF

Related products

Panasonic CM401-L/CM401-M

,
Features: Small footprint Supports wide range of chips: from 0201 chips to 24mm square components in high-speed mode 0201 chips to 90mm x 100mm in multi-function mode Up to 30,000 components per hour 08 feeder inputs (using 8mm dual), Gang feeder exchange Dual lane capability
Read more
Quick view
Hot

Panasonic CM602-L

,
Features & Benefits: One platform solution for any kind of production Commonality with existing equipment Linear motor drive increases reliability and reduces maintenance Wide component capability from 0402 (01005) chips to 90 x 100mm on up to 18" x 20" boards Panasonic's CM602 high speed multi-functional placement machine lets you achieve world-class throughput via the light head, high-speed recognition camera and linear motor. Fully compatible with our successful CM series feeder units, nozzles and operation, this single platform solution can place up to 100,000 components per hour by selecting the best-suited combination of high-speed and multi-functional heads. Fast, flexible and intelligent - the CM602 takes your productivity to new heights.
Read more
Quick view

Panasonic DT401-F/DT401-M

,
Features & Benefits Direct pickup along with on-the-fly component replenishment and changeover allows high-speed production Supports twin and single tray feeders 8 mm double tape feeders, as well as 12/16, 24/32, 44/56 and 72 mm tape feeders Interchangeable platform Handles up to 510 mm L x 460 mm W boards
Read more
Quick view
Hot

Panasonic NPM-D

,
The PANASONIC NPM-D is a highly advanced and efficient placement machine that offers outstanding speed and precision for electronics manufacturing. With its innovative technology and user-friendly interface, the PANASONIC NPM-D can handle a wide range of component types and sizes, making it suitable for diverse production needs
Read more
Quick view
Hot

Panasonic NPM-D3

,
Quick-change feeder carts Mounting Speed: 84,000 cph placement accuracy: 25um AM-series intelligent feeders & nozzles Product description: Panasonic NPM-D3 Pick and Place Machine, Mounting Speed: 84,000 cph, placement accuracy: 25um, Quick-change feeder carts, AM-series intelligent feeders & nozzles
Read more
Quick view
Hot

Panasonic NPM-TT

,
Features & Benefits Compatible with lightweight 8-nozzle or 3-nozzle head V2 Part Range: (01005) 0402 chip to 1 20L x 90W x 28T to BGA up to 80 x 80 component range Process up to 40 trays and 26 fixed tape and reel inputs per side for a total of 92 available inputs Minimize downtime with pre-pickup smart tray component inspection and interchangeable feeder and tray locations Compatible with CM and NPM-series intelligent feeders & nozzles
Read more
Quick view
Hot

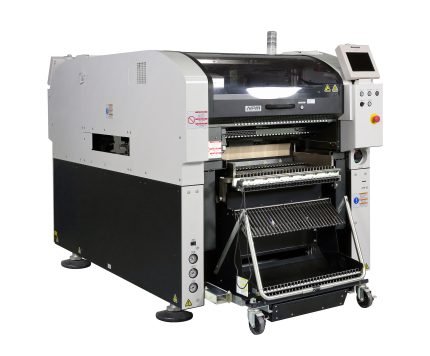

Panasonic NPM-W2

,
