Modular placement machine with industry-leading productivity and placement accuracy
Industry-leading edge device that achieves Autonomous Factory
Evolution of core structural units such as placement head and component recognition camera, placement accuracy and CPH has improved
Compatible with APC-5M software for autonomously suppressing irregularities in the 5Ms
Inherits concept of conventional NPM series, allows for use of existing feeders, nozzles, and carts (minimum investment)
Combination with Auto Setting Feeder realizes ±10μm placement accuracy

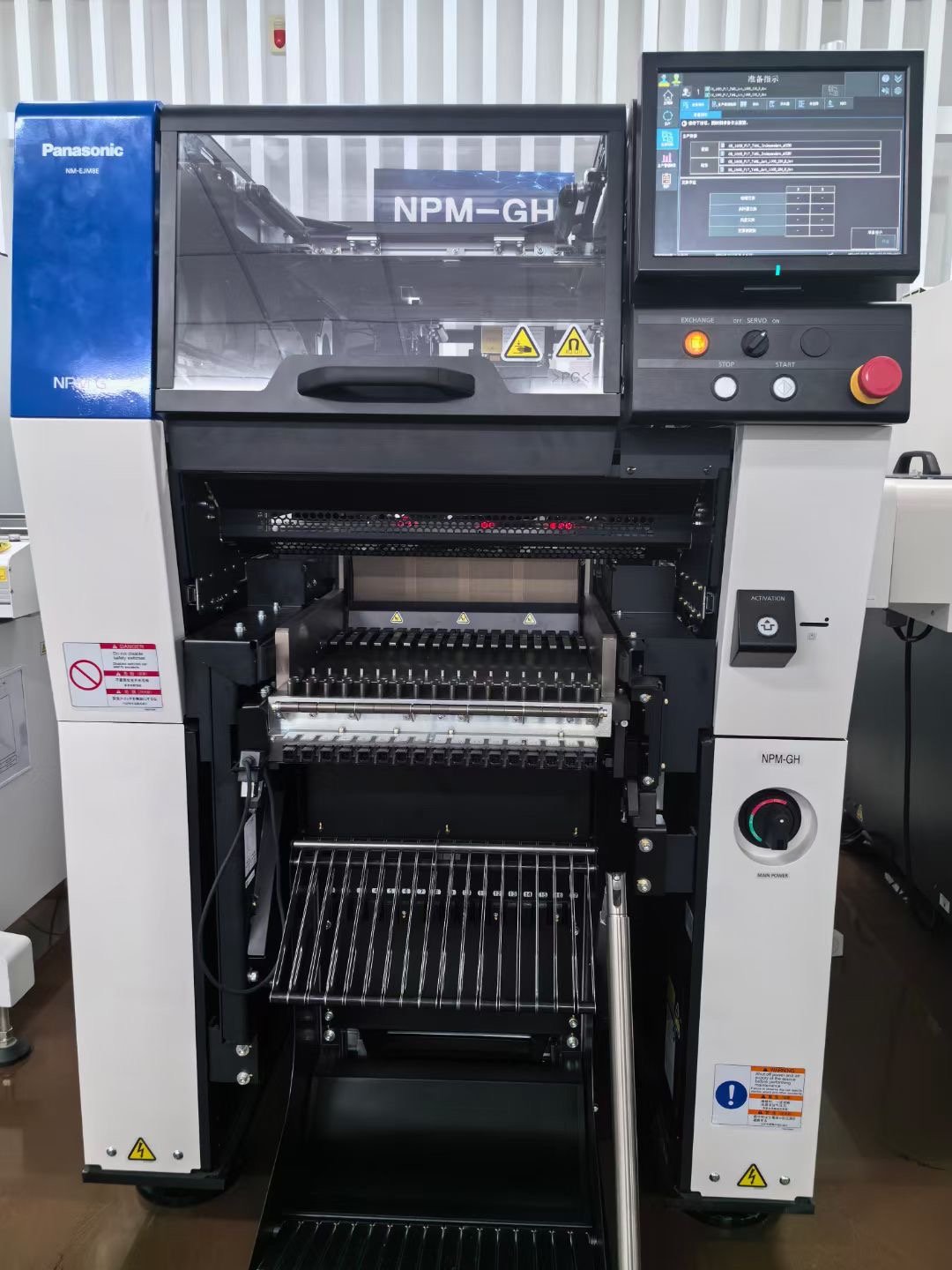

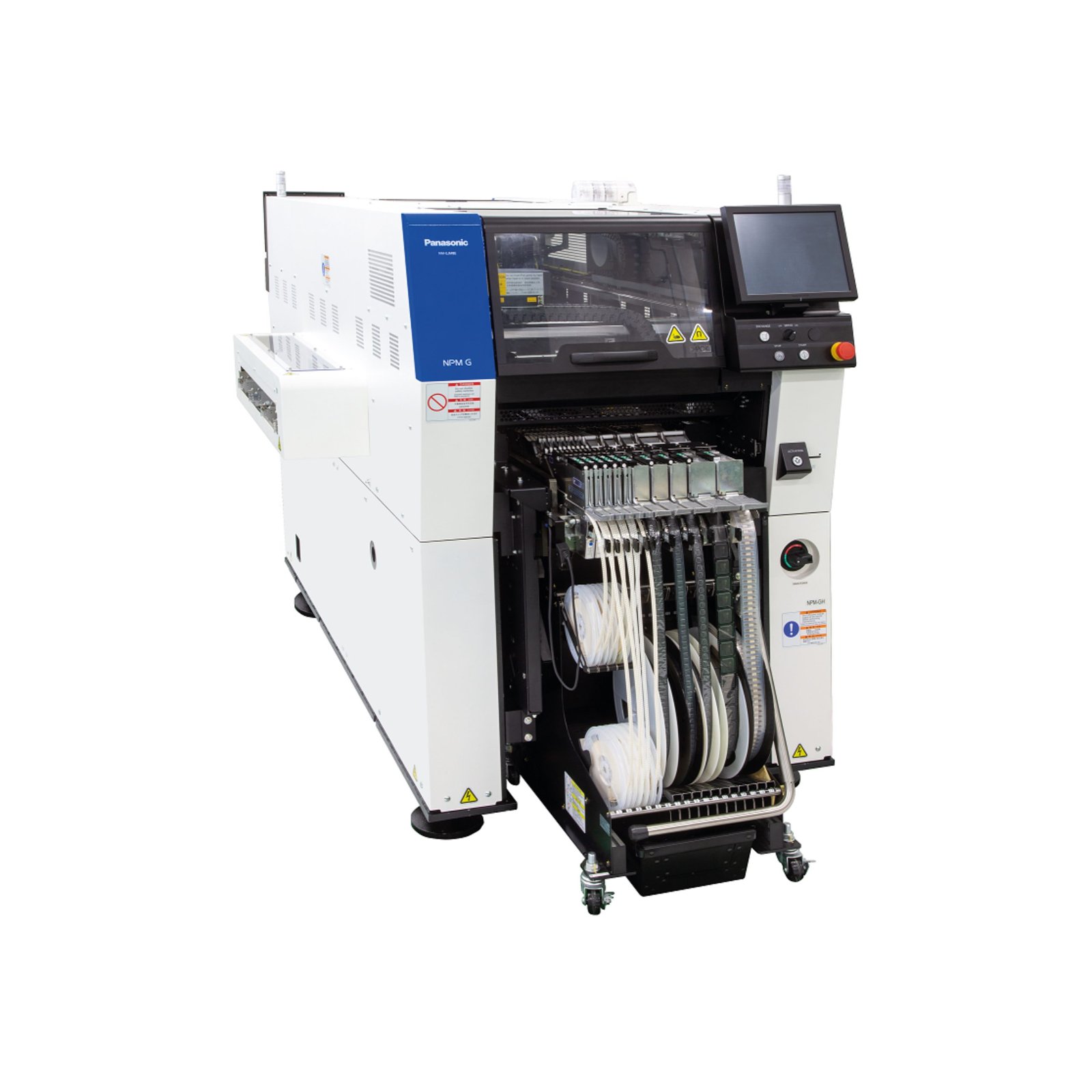

Panasonic NPM-GH
Modular placement machine with industry-leading productivity and placement accuracy
Industry-leading edge device that achieves Autonomous Factory
Evolution of core structural units such as placement head and component recognition camera, placement accuracy and CPH has improved
Compatible with APC-5M software for autonomously suppressing irregularities in the 5Ms
Inherits concept of conventional NPM series, allows for use of existing feeders, nozzles, and carts (minimum investment)
Combination with Auto Setting Feeder realizes ±10μm placement accuracy
| Placement Head |
16 nozzle head |
|---|
Description
SPECIFICATION
| SKU | NM-EJM8E |
| Model ID | NPM-GH |
| Model No. | NM-EJM8E |
| PCB Dimensions (mm) * | Single-lane mode: L 50 mm × W 50 mm to L 510 mm × W 590 mm [*1] |
| Dual-lane mode: L 50 mm × W 50 mm to L 510 mm × W 300 mm [*1] | |
| PCB Exchange Time | 2.3 s ( L 350 mm or less) |
| 5.0 s ( L 350 mm or over to L 510 mm or less) May differ depending on PCB specifications. | |
| Electric Source | 3-phase AC 200 , 220 , 380 , 400 , 420 , 480 V 2.1 kVA |
| Pneumatic Source * | Min.0.5 MPa ～ Max. 0.8 MPa 200 L / min (A.N.R.) [*2] |
| Dimensions (mm) * | W 975 mm × D 2,473 mm × H 1,444 mm [*3][*4] |
| Mass * | 2,330 kg |
INFO
